Bind搭建DNS服务系统

October 16, 2013

简介

Bind 是目前应用最广泛的 DNS 服务器软件,其主要包括服务器实现,解析器库实现和测试三个部分。

说明

本文仅讨论如何把 Bind 配置成一台 DNS 域名服务器,关于 DNS 协议的说明,请参考DNS 协议详解

安装

centos

yum install bind bind-libs bind-utils bind-chroot

其中 bind-chroot 用于让 bind 运行于 chroot 模式下。

ubuntu

apt-get install bind9 dnsutils

配置

概述

bind 的配置文件为 named.conf,没有 chroot 时位于/etc/named.conf,chroot 时位于/var/named/chroot/etc/named.conf 下。配置文件由配置语句和注释组成。关于配置的详细说明可参考BIND 9 Administrator Reference Manual

配置语句列表

  • acl 定义一个 IP 列表名,用于接入控制
  • controls 宣告 rndc 使用的控制通道
  • include 包含一个文件
  • key 设置密钥信息,用于授权和认证配置中
  • logging 设置日志服务器
  • options 控制服务器的全局配置
  • server 单服务器基础上配置
  • trusted-keys 定义信任的 DNSSED 密匙
  • view 定义视图
  • zone 定义 zonefile

注释形式

  • C 语言风格
  • C++风格
  • Shell 风格

Zonefile

TTL

zone 文件有三处控制 TTL 的地方,分别是:

  • $TTL 是没有指定 TTL 的记录使用的缓存时间
  • SOA 记录中的 TTL 是 NXDOMAIN 相应的缓存时间
  • 资源记录的第二个字段记录了本记录的缓存时间

SOA 记录

SOA 记录是 zone 文件里最复杂的记录类型了,所以单独说明下:

$TTL 2d ; zone TTL default = 2 days or 172800 seconds
$ORIGIN example.com.
@      IN      SOA   ns.example.net. hostmaster.example.com. (
               2003080800 ; serial number
               1d12h      ; refresh =  1 day 12 hours
               15M        ; update retry = 15 minutes
               3W12h      ; expiry = 3 weeks + 12 hours
               2h20M      ; minimum = 2 hours + 20 minutes
               )

具体参考这里

其他记录

记录格式为:

名称 TTL 类 类型 具体信息(随类型变化而变化)

示例如下:

www 360 IN A 192.168.1.1
@ 360 IN MX 90 mail.example.com
@ 360 IN NS ns.example.com

演示

说明

本示例我将演示如何通过四台服务器搭建一个完整 DNS 系统,其中包括 root,com 和 info 的授权,xdays.com 和 xdays.me 的授权案,cache-only 域名解析服务器。

配置

root

named.conf 如下:

//
// named.conf
//
// Provided by Red Hat bind package to configure the ISC BIND named(8) DNS
// server as a caching only nameserver (as a localhost DNS resolver only).
//
// See /usr/share/doc/bind*/sample/ for example named configuration files.
//


options {
 listen-on port 53 { any; };
 //listen-on-v6 port 53 { ::1; };
 directory  "/var/named";
 dump-file  "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";
 allow-query     { any; };
 recursion yes;


 //dnssec-enable yes;
 //dnssec-validation yes;
 dnssec-enable no;
 dnssec-validation no;
 dnssec-lookaside auto;


 /* Path to ISC DLV key */
 bindkeys-file "/etc/named.iscdlv.key";


 managed-keys-directory "/var/named/dynamic";
};


logging {
        channel default_debug {
                file "data/named.run";
                severity dynamic;
        };
};


zone "." IN {
 type master;
 file "named.ca";
};


include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";

named.ca 如下:

$TTL 86400
@ IN SOA @ root (
 42 ; serial (d. adams)
 3H ; refresh
 15M ; retry
 1W ; expiry
 1D ) ; minimum


. 518400 IN NS xdays.root.net.
xdays.root.net. 3600000 IN A 192.168.110.100
info. 518400 IN NS ns.info.
ns.info. 3600000 IN A 192.168.110.101
com. 518400 IN NS ns.com.
ns.com. 3600000 IN A 192.168.110.101

info

named.conf 如下:

//
// named.conf
//
// Provided by Red Hat bind package to configure the ISC BIND named(8) DNS
// server as a caching only nameserver (as a localhost DNS resolver only).
//
// See /usr/share/doc/bind*/sample/ for example named configuration files.
//


options {
 listen-on port 53 { any; };
 //listen-on-v6 port 53 { ::1; };
 directory  "/var/named";
 dump-file  "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";
 allow-query     { any; };
 recursion yes;


 //dnssec-enable yes;
 //dnssec-validation yes;
 dnssec-enable no;
 dnssec-validation no;
 dnssec-lookaside auto;


 /* Path to ISC DLV key */
 bindkeys-file "/etc/named.iscdlv.key";


 managed-keys-directory "/var/named/dynamic";
};


logging {
        channel default_debug {
                file "data/named.run";
                severity dynamic;
        };
};


zone "." IN {
 type hint;
 file "named.ca";
};


zone "info." IN {
 type master;
 file "info.zone";
};


zone "com." IN {
 type master;
 file "com.zone";
};


include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";

named.ca 如下:

. 518400 IN NS xdays.root.net.
xdays.root.net. 3600000 IN A 192.168.110.100

info.zone 如下:

$TTL 86400
@ IN SOA @ root (
 42 ; serial (d. adams)
 3H ; refresh
 15M ; retry
 1W ; expiry
 1D ) ; minimum


info. 518400 IN NS ns.info.
ns.info. 3600000 IN A 192.168.110.101
xdays.me. 518400 IN NS ns.xdays.me.
ns.xdays.me. 3600000 IN A 192.168.110.102

xdays.me

named.conf 如下:

//
// named.conf
//
// Provided by Red Hat bind package to configure the ISC BIND named(8) DNS
// server as a caching only nameserver (as a localhost DNS resolver only).
//
// See /usr/share/doc/bind*/sample/ for example named configuration files.
//


options {
 listen-on port 53 { any; };
 //listen-on-v6 port 53 { ::1; };
 directory  "/var/named";
 dump-file  "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";
 allow-query     { any; };
 recursion yes;


 //dnssec-enable yes;
 //dnssec-validation yes;
 dnssec-enable no;
 dnssec-validation no;
 dnssec-lookaside auto;


 /* Path to ISC DLV key */
 bindkeys-file "/etc/named.iscdlv.key";


 managed-keys-directory "/var/named/dynamic";
};


logging {
        channel default_debug {
                file "data/named.run";
                severity dynamic;
        };
};


zone "." IN {
 type hint;
 file "named.ca";
};


zone "xdays.me." IN {
 type master;
 file "xdays.me.zone";
};


zone "xdays.com." IN {
 type master;
 file "xdays.com.zone";
};


include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";

named.ca 如下:

. 518400 IN NS xdays.root.net.
xdays.root.net. 3600000 IN A 192.168.110.100

xdays.me.zone 如下:

$TTL 86400
@ IN SOA @ root (
 42 ; serial (d. adams)
 3H ; refresh
 15M ; retry
 1W ; expiry
 1D ) ; minimum


xdays.me. 86400 IN NS ns.xdays.me.
ns.xdays.me. 360 IN A 192.168.110.101
www.xdays.me. 360 IN A 1.1.1.1
img.xdays.me. 360 IN A 2.2.2.2

cache-only

named.conf 如下:

//
// named.conf
//
// Provided by Red Hat bind package to configure the ISC BIND named(8) DNS
// server as a caching only nameserver (as a localhost DNS resolver only).
//
// See /usr/share/doc/bind*/sample/ for example named configuration files.
//


options {
 listen-on port 53 { any; };
 listen-on-v6 port 53 { ::1; };
 directory  "/var/named";
 dump-file  "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";
 allow-query     { any; };
 recursion yes;


 //dnssec-enable yes;
 //dnssec-validation yes;
 dnssec-enable no;
 dnssec-validation no;
 dnssec-lookaside auto;


 /* Path to ISC DLV key */
 bindkeys-file "/etc/named.iscdlv.key";


 managed-keys-directory "/var/named/dynamic";
};


logging {
        channel default_debug {
                file "data/named.run";
                severity dynamic;
        };
};


zone "." IN {
 type hint;
 file "named.ca";
};


include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";

named.ca 如下:

. 518400 IN NS xdays.root.net.
xdays.root.net. 3600000 IN A 192.168.110.100

抓包信息

标准域名解析

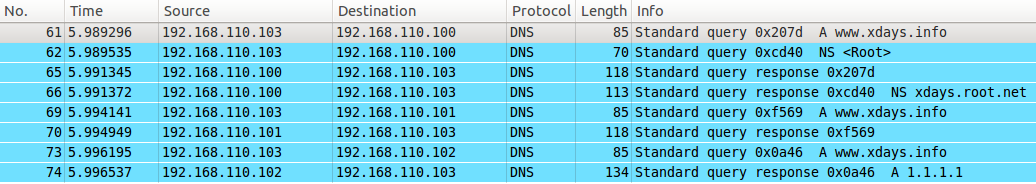

执行 dig www.xdays.me,数据包如下: DNS A
Record

带 CNAME 域名解析

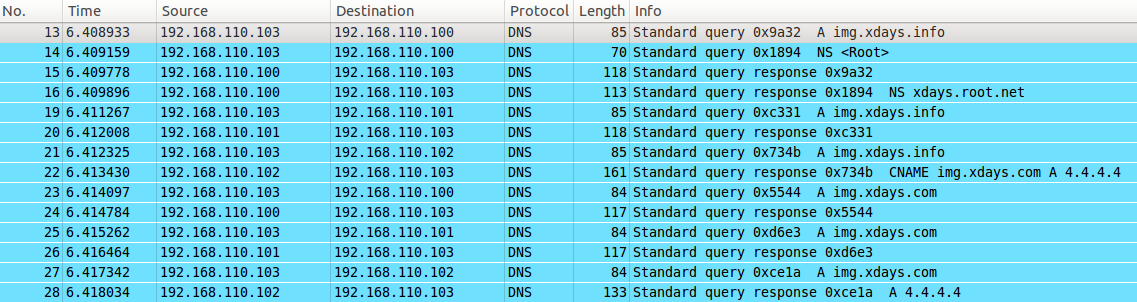

执行 dig img.xdays.me,数据包如下: DNS

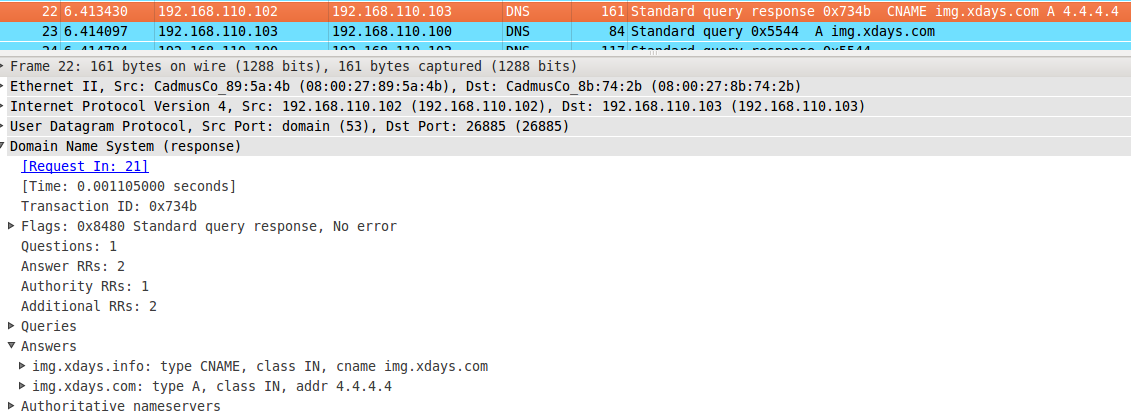

A-CNAME 注意一点,如果 img.xdays.me 的 CNAME 记录是 img.xdays.com,而且这里俩域的授权是同一台,那么授权会把 CNAME 记录和 A 记录同时返回给本地域名解析服务器,数据包如下: DNS A-CNAME
detail

注意:这里有个疑问尚未解决,在 CNAME 和 A 记录同时被返回之后,本地域名服务器又对 img.xdays.com 进行了一次递归解析,我不知道意义何在,如有结论请指教。经过请教这个过程称为DNS 重查,也就是说即使你直接给我了 CNAME 和 A 记录,但是我无法验证你到底是不是 xdays.com 的授权,所以我要递归解析查询一次。
